Mudanjiang Xinbeifang Petroleum Drilling Tool Co., Ltd was established in May 2003. After more than two decades of development, the company has a registered capital of 100 million yuan, covers an area of 30,000 square meters, and has a construction area of 20,000 square meters.Xinbeifang company is a national high-tech enterprise. Its leading products include internal blowout prevention tools and drilling jars etc, among which the internal blowout prevention tools are the main drafter of the national standards and petroleum industry standards for this product series. The company currently holds 10 national invention patents and 30 utility model patents.

The company has obtained ISO9001-2008 quality management system certification,API and HSE certification.The technology research and development center of Xinbeifang Company has been successively awarded the titles of "Engineering Technology Research Center for Internal Blowout Prevention Tools in Oil Drilling and Production" and "Provincial Enterprise Technology Center" by Heilongjiang Province. The inspection center has passed the laboratory accreditation of the China National Accreditation Service for Conformity Assessment (CNAS),Lience No.L6376. Xinbeifang Company has been successively recognized as a single champion enterprise in the manufacturing industry of Heilongjiang Province and a national "Specialized, Refined, Unique and Innovative" small and medium-sized enterprise. In 2025, it passed the public announcement of key small and medium-sized enterprises by the Ministry of Industry and Information Technology of the People's Republic of China.

Xinbeifang Company has been consecutively rated as a Class A qualified manufacturer of internal blowout prevention tools for well control equipment of CNPC for four terms (once every four years). The company's products such as Kelly valves and stabilizers have been fully verified in the 10,000-meter deep well of Takao 1 of China National Petroleum Corporation.

The "Automatic Pressure Inspection Equipment for internal blowout prevention tools" has been recognized as a "first-of-a-kind innovative product in Key Fields of Heilongjiang Province". Which also won the Third prize of Heilongjiang Science and Technology Award in 2021.

Meanwhile,The company is equipped with advanced processing equipment such as four-axis linkage machining centers, laser cladding equipment, supersonic spraying equipment, and CNC drilling and reaming equipment.

Xinbeifang company are willing to continue providing custmers with more high-quality products and services as we always do!

Top Drive IBOP

Top Drive IBOP are generally classified into two types: Upper IBOP(hydraulic type)and Lower IBOP (manule type). It is also possible to design upper and lower IBOP as an integrated structure, which is called a top drive manual-automatic integrated valve. They are a type of control valve used in conjunction with the top drive system and are one of the effective tools for preventing blowouts. Drilling fluid can flow freely through this valve without pressure drop.Upper IBOP is controlled by the top drive system and can be turned on or off by rotating 90º as indicated.Lower IBOP can be turned on or off by rotating 90º as indicated with a dedicated wrench. When overflow or blowout occurs, close top drive IBOP to cut off the internal passage of the drill string, achieving the purpose of preventing blowout inside the drill string.

Kelly valve

Kelly valve is a manual control valve in the drill string circulation system and is one of the effective tools to prevent blowout，also to provide unrestricted flow of drilling fluids. According to the indication direction, Kelly valve can be opened on or closed off by the special operation spanner at 90 degrees.

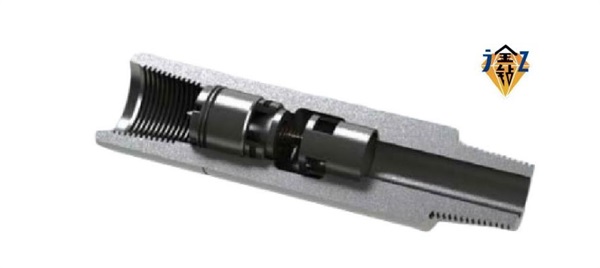

Arrow-type check valve

Arrow-type check valve is one of the commonly used anti-blowout tools in oil and gas drilling operation. It enters the well along with the drill string. Once overflow, well surge or the positive circulation stops during the drilling or well repair process,arrow-type check valve will quickly close under the action of the reverse circulation pressure and spring force inside the drill string, cutting off the internal passage of the drill string and achieving the purpose of preventing blowout inside the drill string.

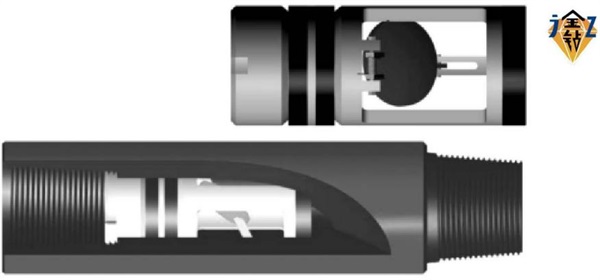

Float valve sub

Float valve sub is one of the essential tools for oil drilling,which is connected at upper part of drill bit.The float valve sub is near the bit connecting thread.The main application is,when connected with single piece pipe,it prevents mud from coming in and up blocking the hole.When blowout takes place,blowout in drill string will be avoided because nozzle is closed automatically by valve cap of the float valve assmebly.Float valve has Model F and Model G type.

QY-S Double-acting hydraulic drilling jar

The QY-S Double-acting Hydraulic Drilling Jar is a double-acting hydraulic jarring tool that can provide an extremely powerful impact force when the bottom hole assembly is stuck. As a component of the drill string, it can withstand:

⑴ Temperature up to 260℃;

⑵ Static water pressure up to 137MPa;

⑶ Normal torque and pump pressure drilling conditions for long-term use.

The QY-S Double-acting Hydraulic Drilling Jar can be used as part of the drill collar because its length and diameter are similar to the drill collar, and it has compatible elevator installation areas. Under drilling operation, it does not jar and is not affected by normal drilling conditions or torque.
